Description

Two profiles available:

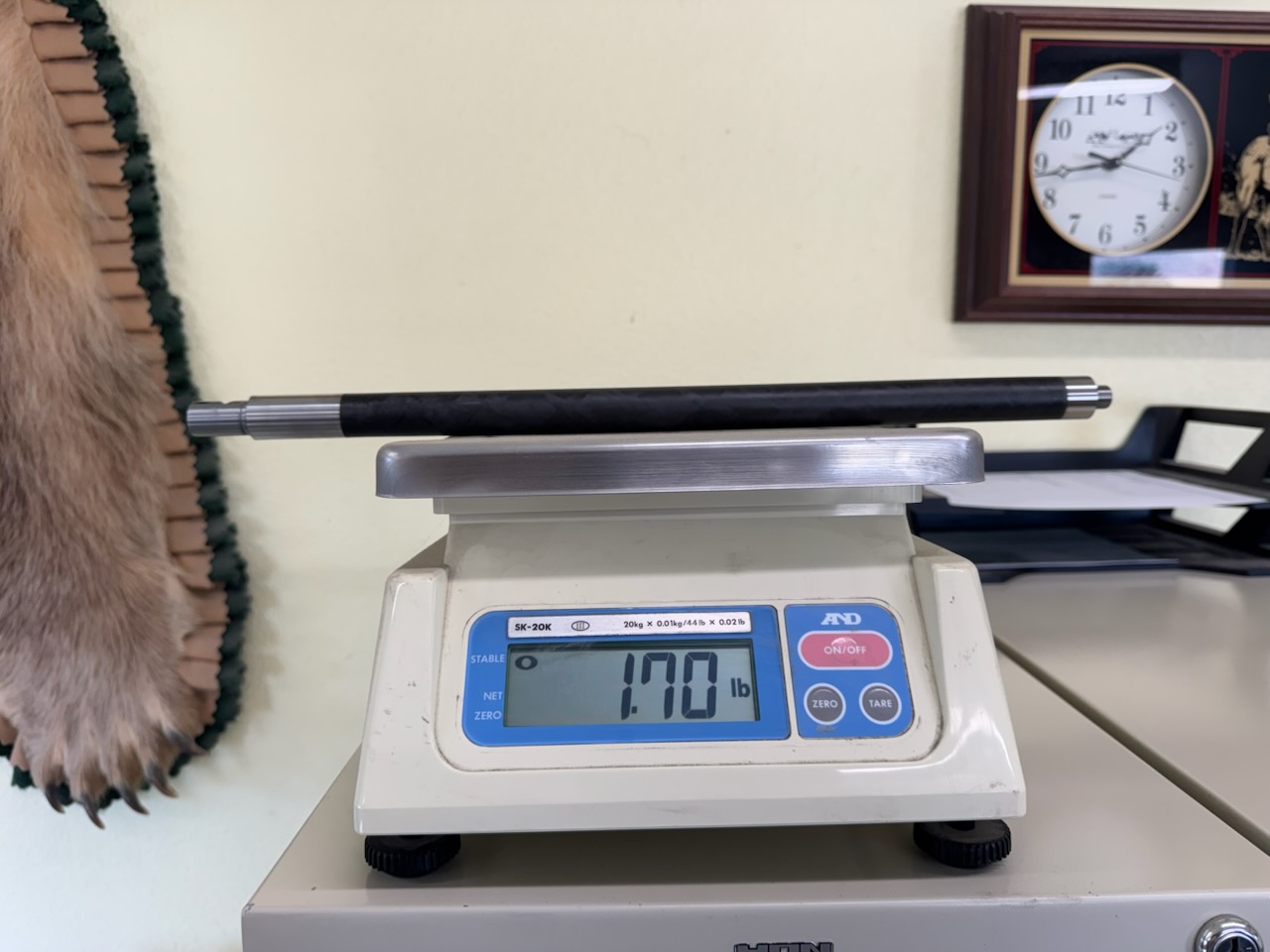

.900″ diameter straight cylinder with no taper. Made from 4-groove blanks and chambered with our match reamer. The weight is 1.70lbs (27.2 ounces). These are Carbon Fiber wrapped. This is the only contour available.

These barrels will come threaded at the muzzle 1/2″ x 28″ and an 18″ finish length.

The barrel is then cut to final length and crowned with an 11 degree target-type crown. Each barrel is then polished to a 600 grit exterior finish and then our name and the cartridge designation is engraved on the barrel. And lastly the finished barrel receives a final inspection and is sealed in a 6 mil poly tube and placed on the shelf.

Drop-in barrels do not require any special gunsmithing. Directions for installing the barrel are furnished with each barrel. These instructions can also be found directly below.]

Installation Instructions

To remove original barrel:

1. Loosen the two angled metric set screws in the bottom of the receiver ring using a 3mm Allen wrench.

2. The original barrel will then pull straight out of the receiver.

To install new barrel:

1. Slide the new barrel into receiver being careful to align the flat at 6:00 on the barrel with the notch in the receiver.

2. Tighten the two angled set screws. This pulls the barrel into the receiver and also sets the headspace. Recommended torque is 35-40 inch pounds.

Note: We turn the barrel shanks slightly larger than the original CZ dimension on this diameter. We’ve seen a couple of receivers that had a slight burr where the angled tapped holes break out into the receiver bore. This little burr prevented the barrel from sliding into the receiver with our close fit shank. So if you find the barrel difficult to slide in place initially, check for these burrs.

The receiver stock screws are a T-27 Torx head.

We offer a .043″ Go Gauge made by Pacific Precision.
